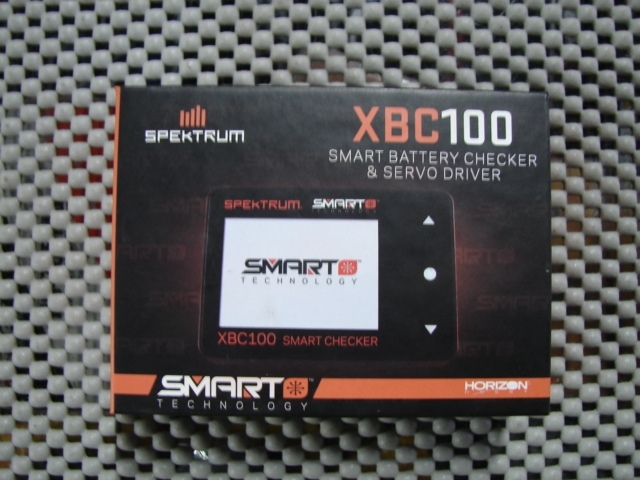

XBC100 Smart Battery Checker & Servo Driver
Manufacturer part number:
Battery checker with built in cell balancing
Advanced Servo testing feature helps with model setup
Spektrum Smart battery technology allows users to take advantage of Smart Battery features
Easy to read full color display
Qualcomm 3.0 compatible USB power port with Quick Charge for compatible Android and IOS devices (up to 12v and 2 amps)
Update port for easy access to updates and new features
The Spektrum XBC100 Smart Battery Checker is a must have tool for any pilot or drivers pit box. More than a battery checker, it features a built-in cell balancer, integrated servo tester and driver, and Spektrum Smart battery connectivity.
When used with a Spektrum Smart battery, you will be able to see and adjust many of the settings only available with a Spektrum Smart charger. This includes one connection for balance and battery level checking, and providing records like number of cycles, internal battery temperature and exception reports. You can even adjust Smart battery settings right from the XBC100.
The XBC100 also features a Qualcomm 3.0 USB charge port, giving you an easy way to keep your mobile device and Spektrum Smart Transmitters charged when USB power ports are scarce. Better yet, the XBC100 gives you the ability to better setup and test your models with the built in servo tester! Center and test your servo endpoints easily with the integrated PWM output port.
Finally, all of this is displayed on a full color IPS LCD screen that is designed to be easy to read in direct sunlight and is accessed via a user friendly touch interface.
Battery Balance Connector
Included for testing LiPos
Battery Temperature Monitoring
1-8S Lithium, 1-10 cell NiCd/NiMH
Balancing Cell Accuracy <0.005V
Also tests servos without having to connect a radio and receiver
+/-0.005V @ 4.2V Measurement Accuracy
